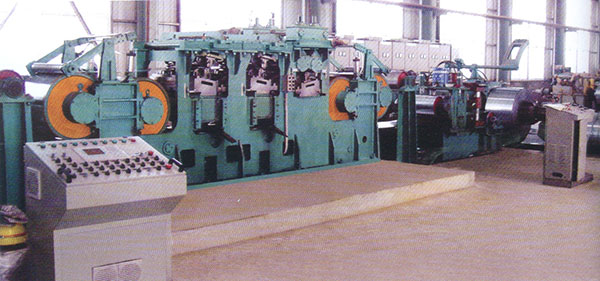

程序和功能 Applications and function
冷軋鋼帶通過二彎一矯,或二彎 二矯的拉彎矯直,去除冷軋板波 形態,調整性能。必要時可配靜 電涂油。使板形整潔,平整。適 用普帶、不銹鋼帶、銅鋁帶生產 企業。
To eliminate wave shapes and adjust functions of cold rolled coils through ways of two bending and one straightening or two bending and two straightening.If necessary,the static coating oil machine could be deployed,which can make coils clean and flat.It is applicable for enterprises who roll common steel,stainless steel,copper and alumunum coils.
工藝流程 Production Process
開卷—兩輥夾送—液壓剪—焊機― 入口 S輥—拉矯機—出口 S輥—涂 油機—液壓剪一卷取機(浮動)
Uncoiling→two rollers transmission→hydraulic shear→welder→entry roller"S"→Bending straightening→exit roller"S"→coating oil machine→hydraulic shear→Coiler(floating)
機組規格 |
Roller length |
600 |
800 |
1000 |
1200 |
1450 |
鋼帶寬度 |
Strip width |
350-500 |
550-700 |
750-900 |
950-1100 |
1100-1300 |
鋼帶厚度 |
Strip thickness |
0.2-1.2 |
0.2-1.2 |
0.2-1.2 |
0.2-1.2 |
0.2-1.2 |
延伸率 |
Extension rate |
0.5-3% |
|
